HDPE Large-Diameter Hollow Wall Winding Pipe Production Line

HDPE Large-Diameter Hollow Wall Winding Pipe Production Line

HDPE twin-wall helix pipe extrusion line

HDPE large diameter draining pollution pipe line

Large diameter winding tube unit

Projects conduit equipment

Hollow wall HDPE winding pipe machine
HDPE large diameter hollow wall winding pipes have been recognized as a substitute for cement pipes and cast iron pipes since it possesses many particular advantages. HDPE large diameter hollow pipes have big market potentiality.
The line adopts two sets of single-screw extruders to ensure high speed and quality extruding; Unique design of composite die-head and forming by spiral rotation ensure high efficiency and quality; Advanced PLC Control system makes operation very convenient and operation very efficient; Special pipe fittings are adopted and connection is very convenient.

Large-diameter hollowness winding pipe production line

The Qingdao changjie machine Co.Ltd produce the large-diameter winding pipe production line for the fourth generation of product, the outlook design was already artistic, the automaticity is high, the operation is simple, the production pipe speed is quickest for the same profession. This product hits the product for the changjie Company hosts, its sales volume for this local same profession first. The present company produces the double wall winding pipe production line, only need replace the partial molds then to produce the single wall winding pipe, may save raw material to reach 40%, is suitable in the different use special demand, has made the enormous contribution for the energy conservation environmental protection!

•The HDPE large –diameter hollowness winding pipe, is the country “15” the key science and technology research project. Our company through the introduction digestion overseas advance technology, has developed successfully the HDPE large –diameter hollowness winding pipe production line and puts in the market, may produce tubing caliber 200-3000mm the large pipe. This pipe is the substitution steel pipe, cement pipe's ideal draining water pollution discharge product.

•The HDPE large –diameter hollowness winding pipe non-toxic, tasteless, the corrosion preventing, the anti-aging, Weather fastness is  good (-70~C to +80~C) to be possible in underground and the surface use. Widely applies in agricultural, the industry water distribution project.

•This production line equipment operation is keen, the output is high, the product size is stable, the complete set production line provides the craft formula and “hands over the key” the project.


SEND INQUIRY NOW
CONTACT US

Phone:

+86-13969850201

Telephone:

008613969850201

Fax:

0532-81126661

WhatsApp:

WeChat:

+86-13969850201
Send your inquiry
Main Technical Parameters

List

Specification(mm)

Extruder

Total Power Installed
     (Actual Consuption  60%)

Max. Out put
     (kg/h)

Overall Dimensions(L-W-H)

Model

L/D Ratio

 (kw)
     Main Motor Power

 (kw)

SKRG 800

200-800

SJ75

33:1

75

30

230

260

10×21.5×2.6

SJ50

30:1

37

18

SKRG1200

300-1200

SJ90

33:1

110

30

300

500

10×23×2.7

SJ65

30:1

75

18

SKRG1600

900-1600

SJ100

33:1

132

40

450

600

28×18×6

SJ75

30:1

75

18

SKRG2200

1200-2200

SJ120

33:1

185

60

500

700

30×20×7

SJ90

33:1

110

36

SKRG3000

2200-3200

SJ150

33:1

200

80

550

800

32×20×8

SJ90

33:1

132

60

SKRG4500

2600-4500

SJ150

33:1

280

80

650

1000

45×20×8

SJ100

33:1

160

60

Performance and merit

1. Top quality by advanced technology

2. High speed and excellent extrusion quality by adopting two sets of single screw extruders with high efficiency performance

3. Unique design of composite die-heads for large diameter twin-wall spiro pipe processing with high production efficiency

4. Easy operation and high performance by adopting an advanced PLC control system

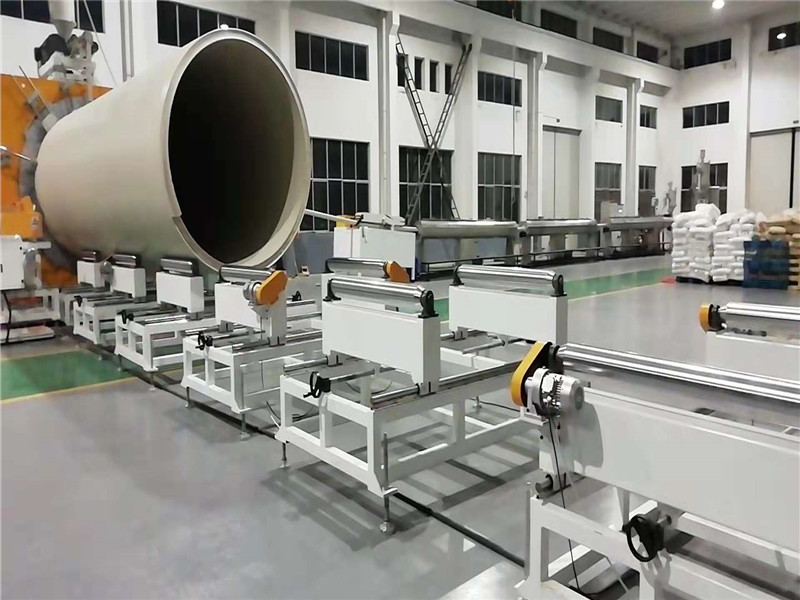

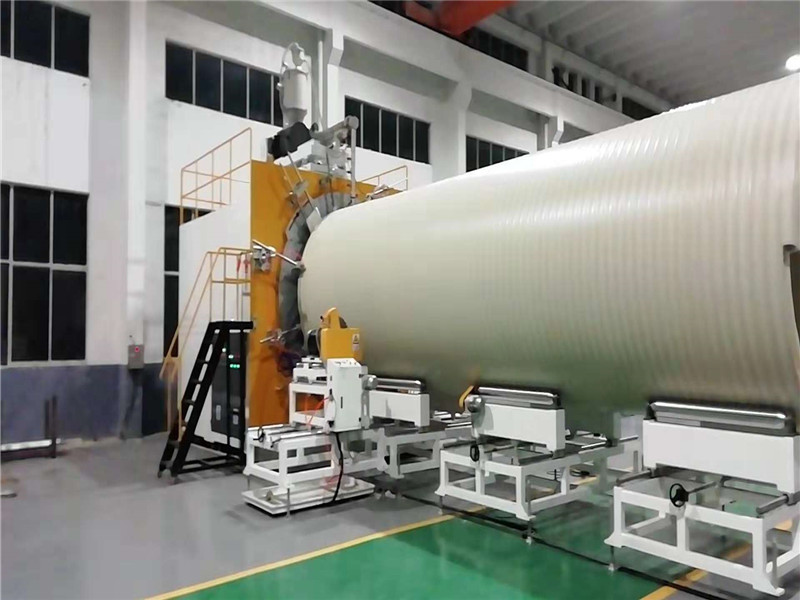

Product display
