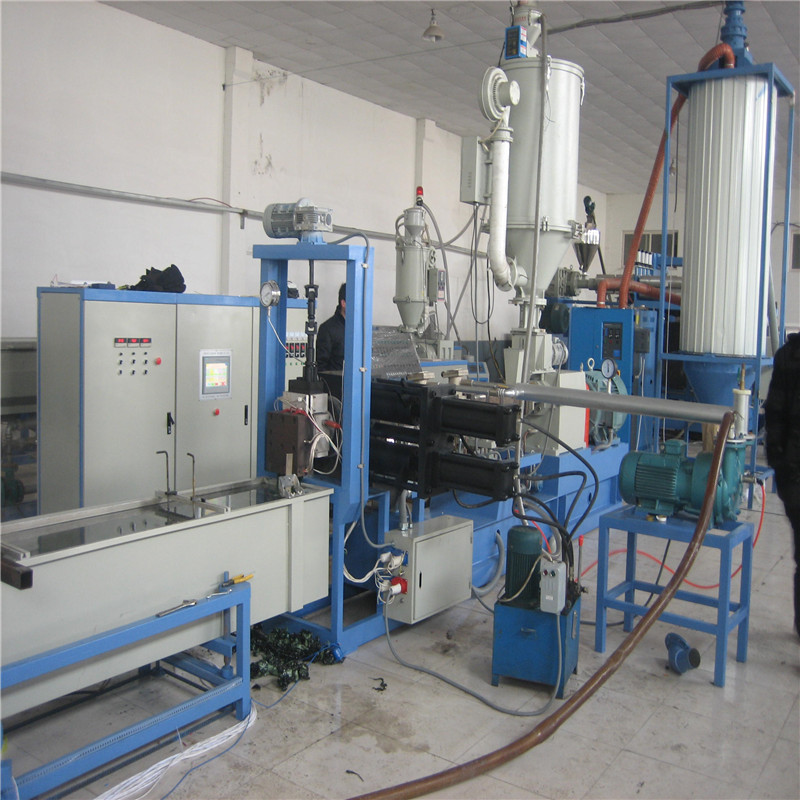

PET strap production line

PET strap production line

PET Strapping Band Production line features and technical data: PET strapping band production is designed and developed new type machine by our company the comprehensive study of equipment and scientific, reasonable matching, the production practice of the long-term repeatedly, drawing on the experience of domestic and foreign similar mechanical design strengths, combining characteristic of plastic products in China.

SEND INQUIRY NOW
CONTACT US

Phone:

+86-13969850201

Telephone:

008613969850201

Fax:

0532-81126661

WhatsApp:

WeChat:

+86-13969850201
Send your inquiry
Product Introduction


PET Strapping Band Production line features and technical data: PET strapping band production is designed and developed new type machine by our company the comprehensive study of equipment and scientific, reasonable matching, the production practice of the long-term repeatedly, drawing on the experience of domestic and foreign similar mechanical design strengths, combining characteristic of plastic products in China. The machine use variable-frequency motor as power resource. The mechanical transmission adopts soft connection. Its rotation is exact and smooth, saving power and low noise.

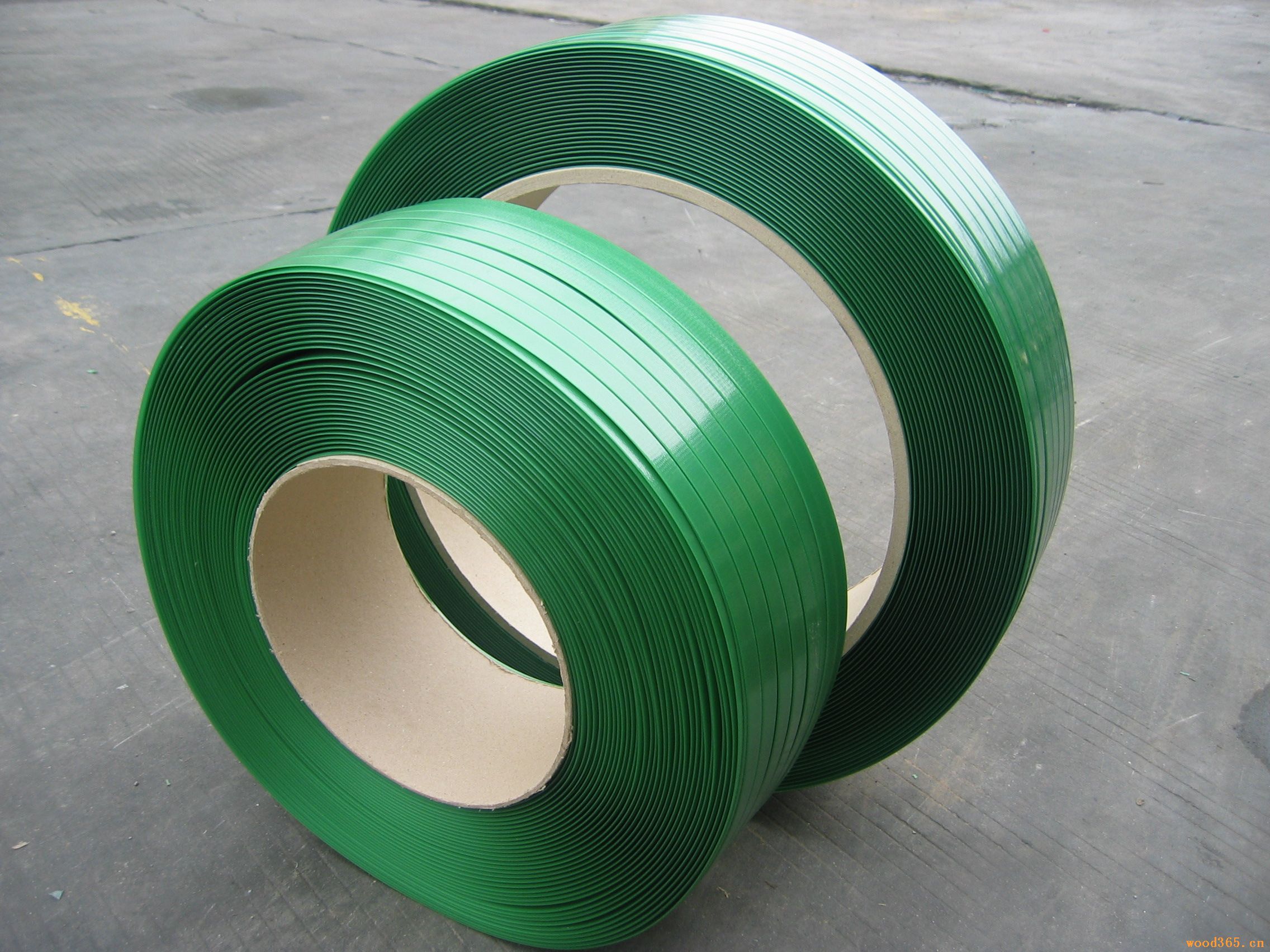

PET which has the advantage of good rigidity, heat-resistance, no rust and its specific gravity is 1/5 of steel specific gravity, is mainly used for packing. Features of PET are high tensile strength, good extensibility, impact resistance, not easily broken, cheap price, and flexible, convenient operation, safe and reliable. It is ideal substitute for steel internationally, which is widely used for papermaking, Wood, textile, cotton and fiber, non-ferrous metal, canned products, chemical products, metallurgy, Power cable, aluminum and plastic profile, machinery and electronic products, and all kind of goods pallets strapping. The product is easy to use. It is suitable not only for ordinary steel clipper connection, but also for hot-melt connection by manual or desk-top packer, large-scale enterprise automatic packing machine.


Main Technical Parameters


Model

SJ-65

SJ-75

SJ-90

Extruder

SJ-65/30

SJ-75/35

SJ-90/33

Productivity

60-100kg/h

80-120kg/h

120-150kg/h

Drive Motor

22kw

30kw

55kw

Two-station Winder

60-120m/min,adjustable

Strap Size

Width:5mm-20mm

Width:10mm-25mm

Width:20mm-35mm

Thickness:0.36mm-1.0mm

Thickness:0.5mm-1.3mm

Thickness:0.5mm-1.8mm

Installed Capacity

About80kw

About 90kw

About110kw

Line Dimension

30m×2m×2.2m

30m×3m×4.5m

30m×5m×6m


Competitive Advantage


The PET packing belt has advantages as following:

Limited feeding materials and mixed raw materials.

Automatic cycle of preheating and drying.

Plasticizing even, extrusion stabile, precise temperature control.

Metering pump is to guarantee products continuous and stable.

Stretching products device of great traction and insulated oven.

Large-capacity stainless steel tank, liquid level is automatic controlled.
