PE/PP/PA  single wall corrugation pipe production line

PE/PP/PA single wall corrugation pipe production line

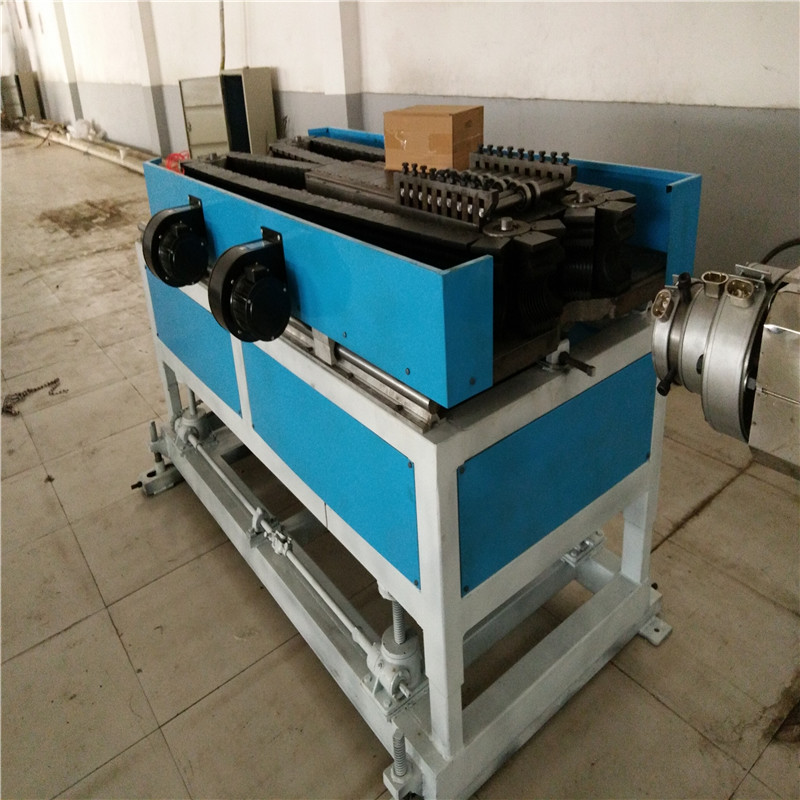

SJ series plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates. The products have water circulating cooling and air cooling system, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.

SEND INQUIRY NOW
CONTACT US

Phone:

+86-13969850201

Telephone:

008613969850201

Fax:

0532-81126661

WhatsApp:

WeChat:

+86-13969850201
Send your inquiry
Product Description



1) Introduction: single-wall corrugated pipe extrusion line can be used to produce single-wall corrugated pipes of PE, PP, PVC, EVA continuously as well as PA corrugated pipes.


2) Characteristic: Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.


3) Application: They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. The pipes from this production line are widely used in washing machine tubes and sink drain-pipes.


SJ series plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates. The products have water circulating cooling and air cooling system, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.


Technical Parameter


4)The main technique parameter:

Model

Pipe Diameter(mm)

Extruder Model

Output (kg/h)

Power (kw)

Forming Machine Power(kw)

Module No. (pairs)

 Line speed(m/min)

L/D

SDG-12

4-12

SJ-30

8-15

3.7

1.5

42

1-8

28:1

SDG-32

8-32

SJ-45

40

11

2.2

38

1-12

30:1

SDG-65

25-65

SJ-65

60

22

2.2

43

1-8

33:1

SDG-110

50-110

SJ-90

150

37

5.5

50

1-5

33:1

1. Forming machine is a closed type structure and provide internal pressure and vacuum forming

2. Forming module is moving in a tunnel

3. Forming module is made of hard alloy steel and anti-corrosion , abrasion

4. No any connection between forming module then reduce time of change module
